Alternating Pressure with Low Air Loss
in stock, ready to be shipped

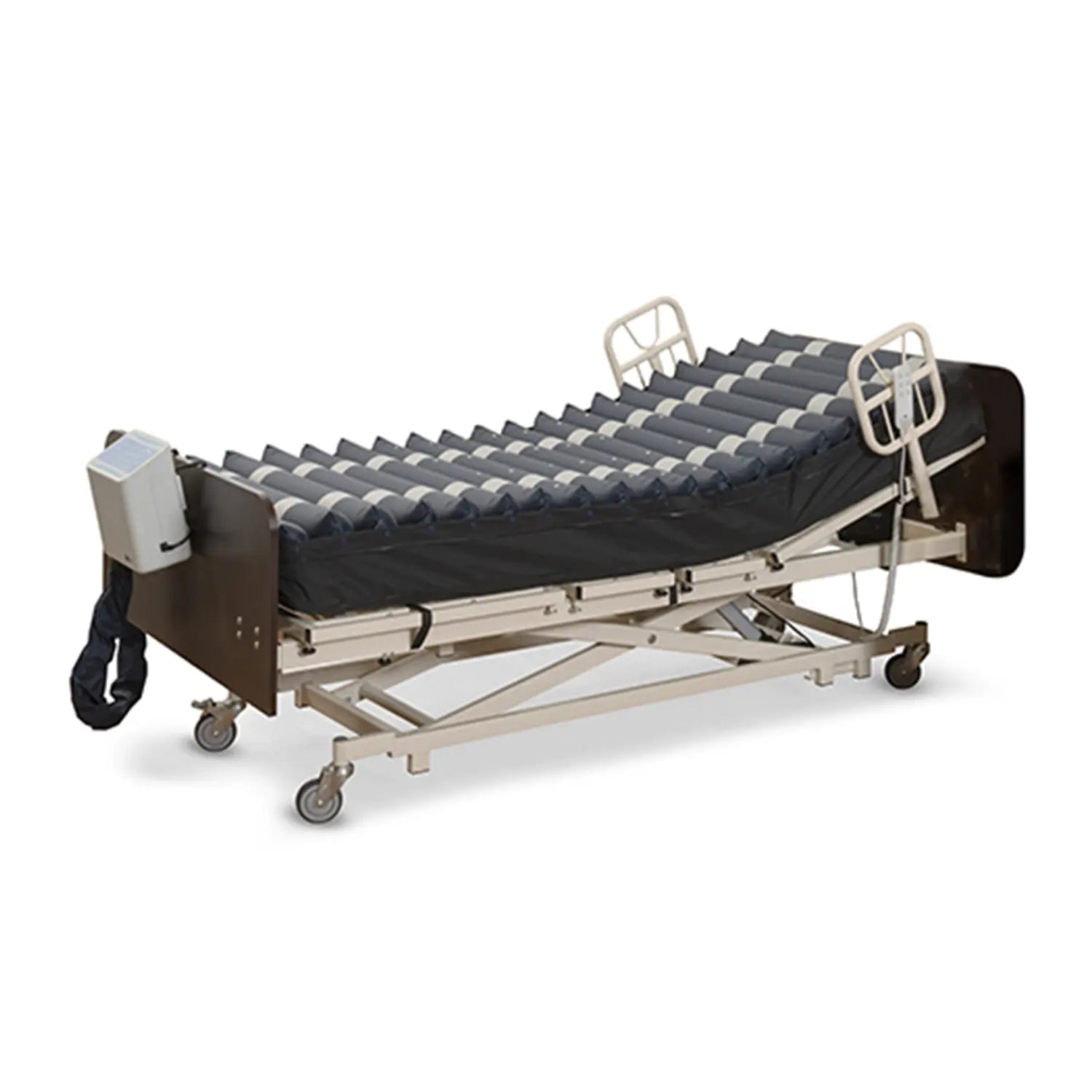

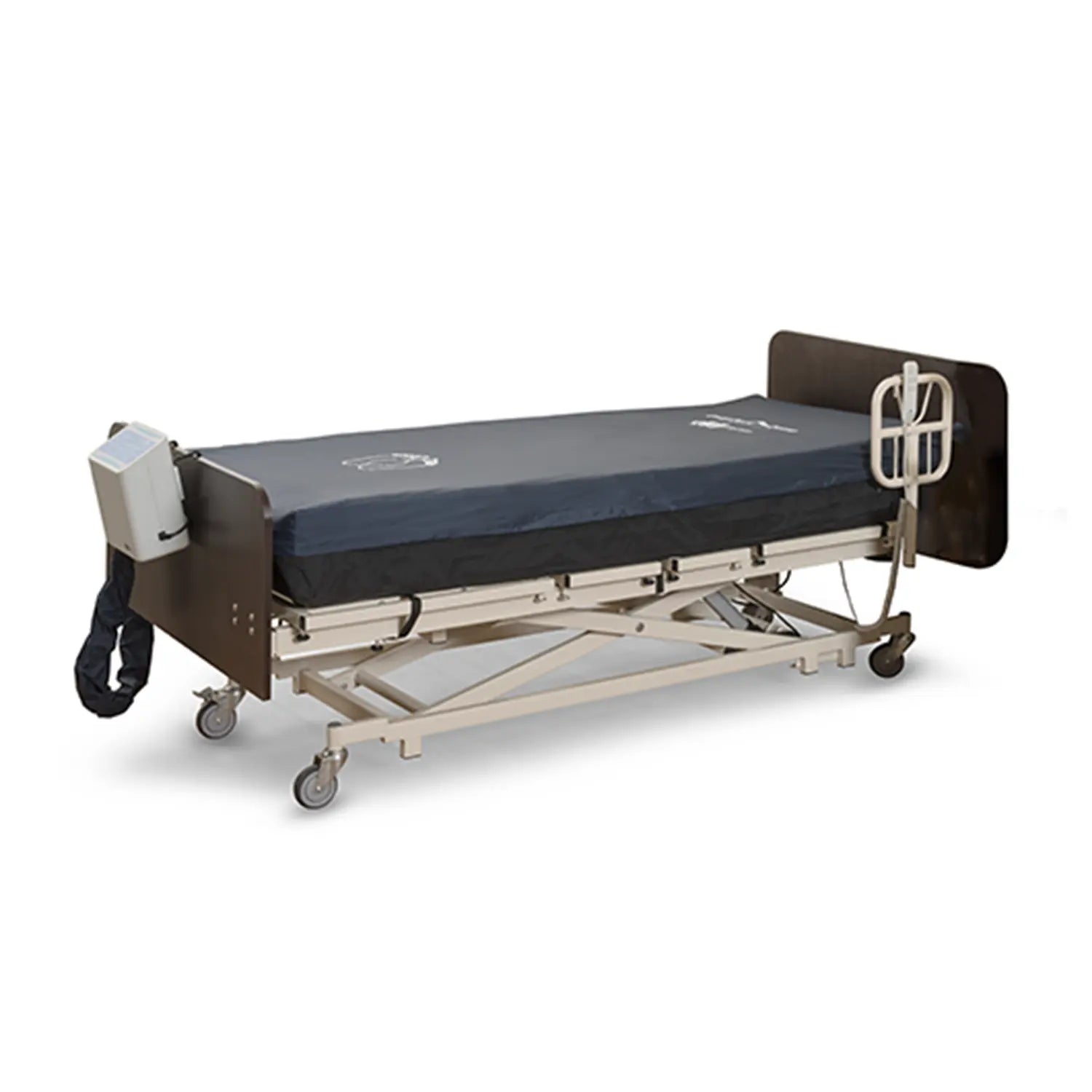

The Comfort Zone mattress series combines alternating pressure and low air loss for effective treatment, prevention and management of Stage IV wounds. 8″ high therapeutic support mattress replacement system has a cell-on-cell design that prevents bottoming out in case of a power outage. The digital pump is easy to operate and allows the caregiver to set the pressure by firmness or patients weight. Available in standard 80″ long or 84″ extra long for the tall patient.
Therapeutic Support Mattress Replacement System Designed to prevent, treat and manage pressure ulcers
Features
Mattress

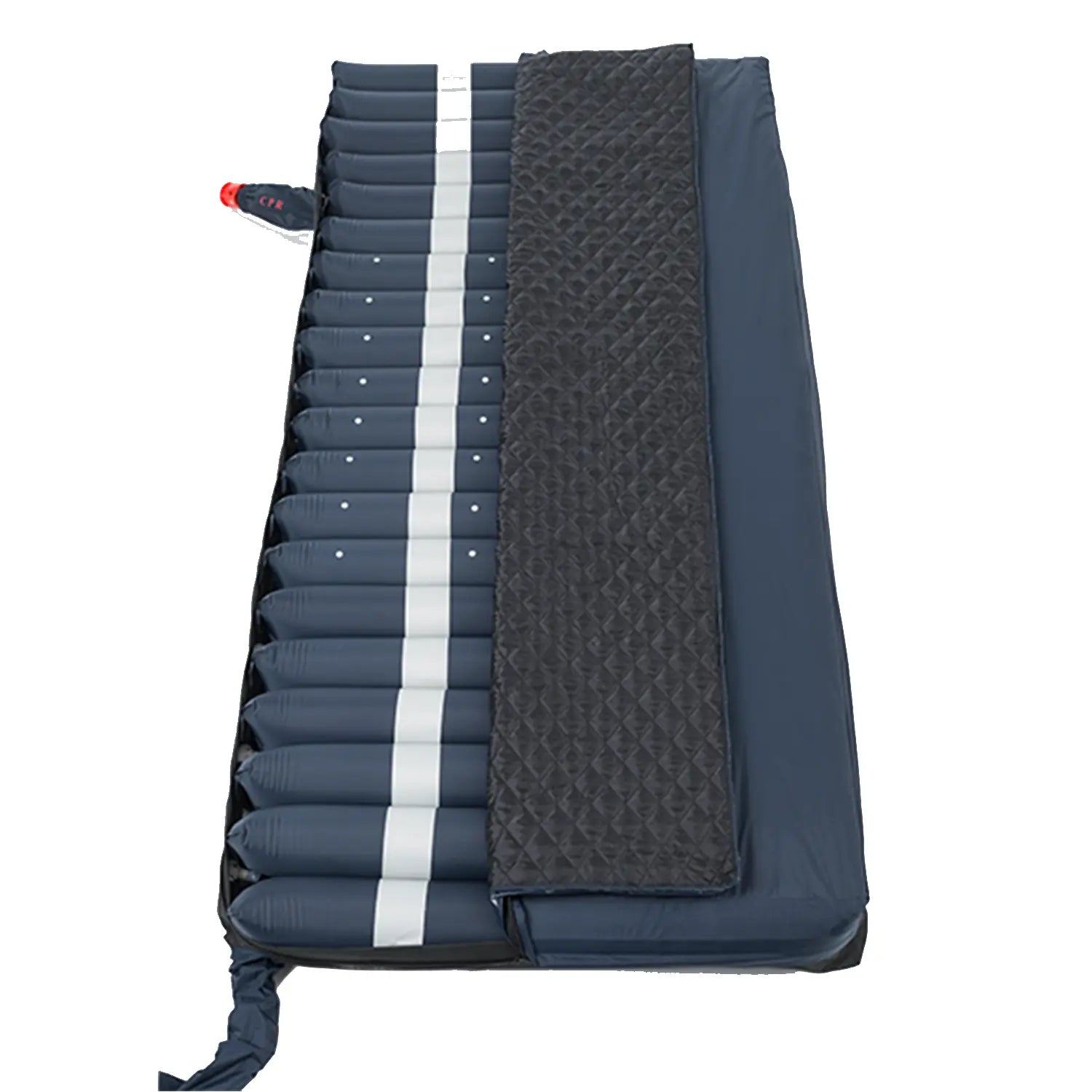

Therapeutic support mattress replacement system
Combines Alternating pressure and low air loss to prevent, treat and mange pressure ulcers
Cell-on-Cell Design – lower 4″ retain air to prevent bottoming out

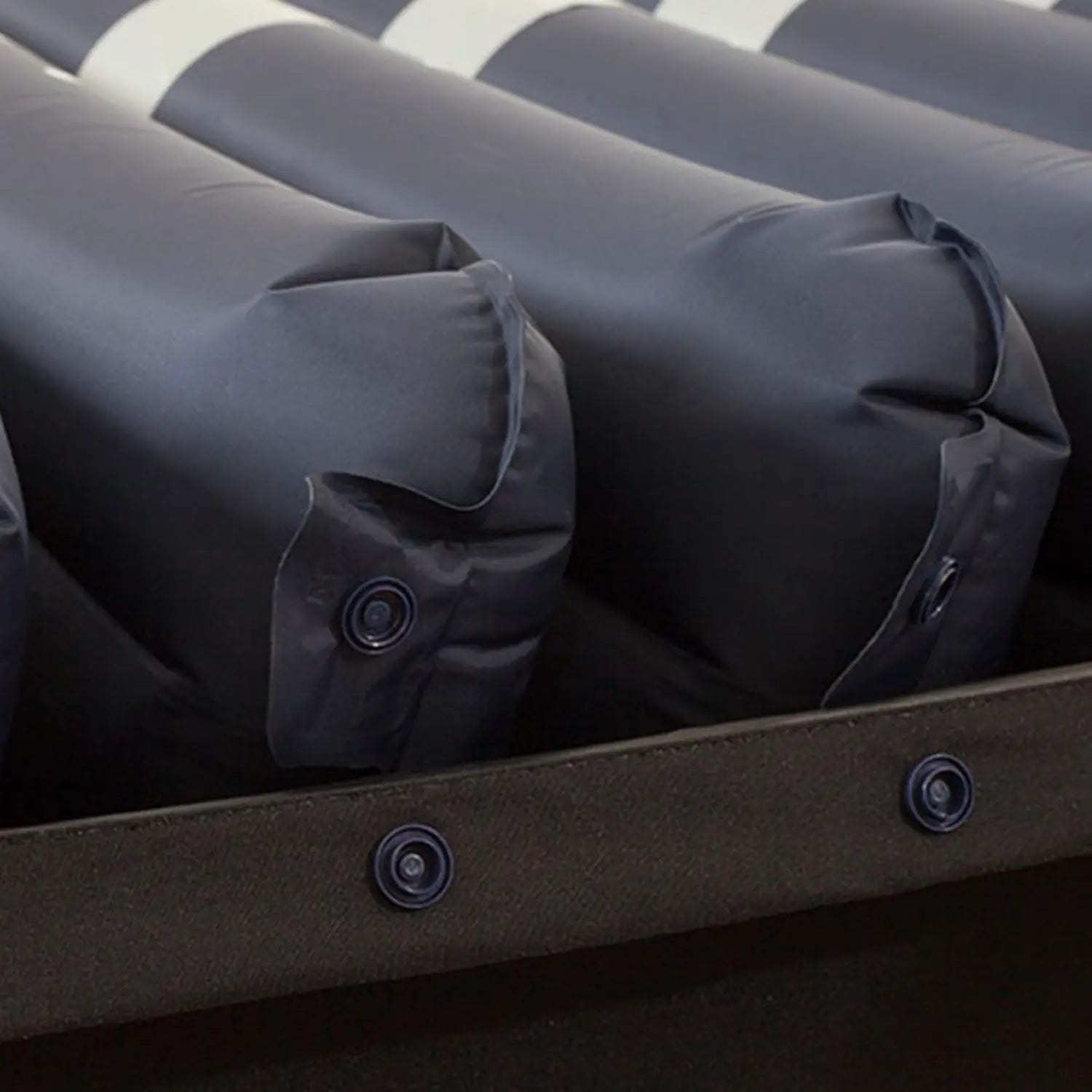

20 Easy Replaceable Snap-Out Air Cells
Pillow Function – Top 3 cells remain static for patient comfort

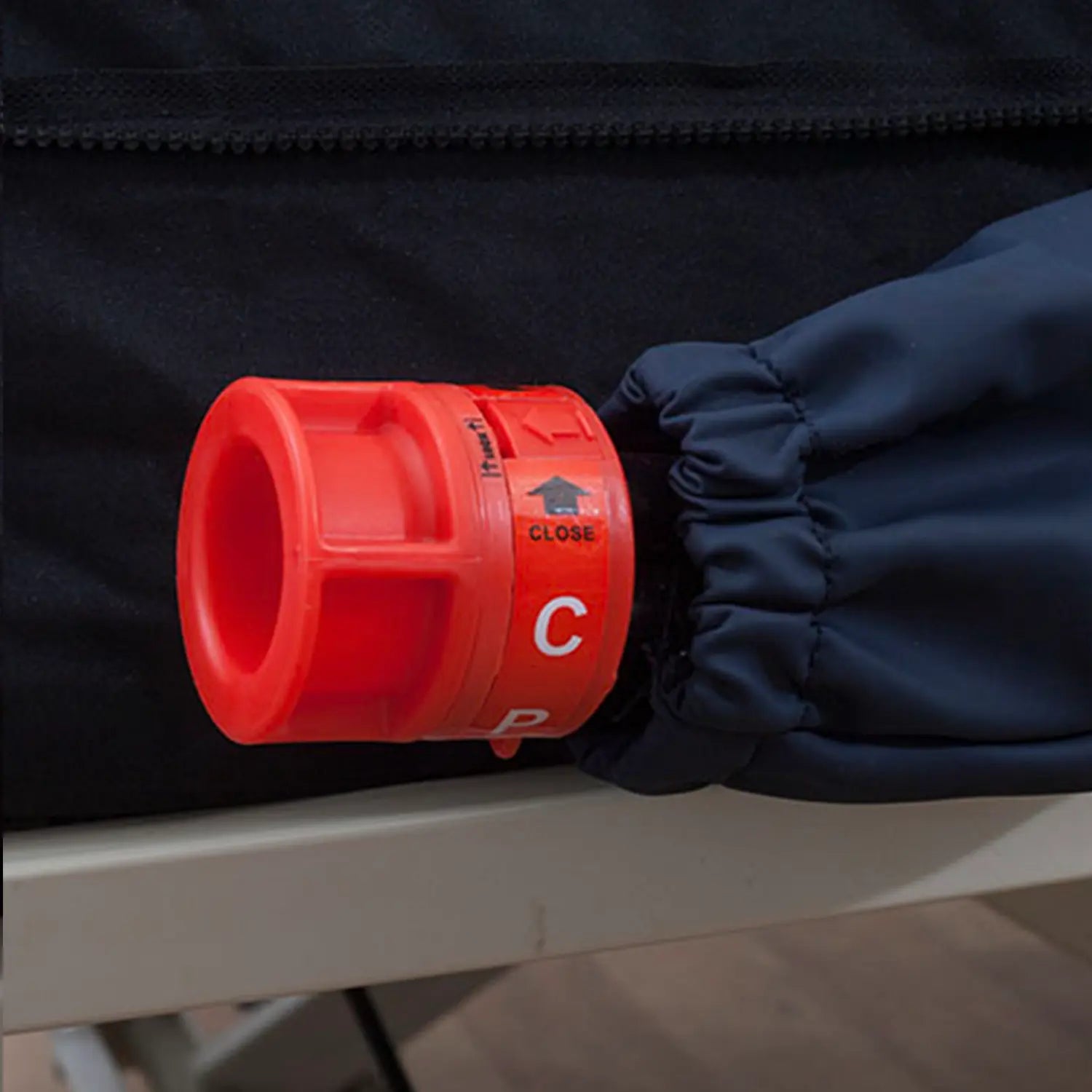

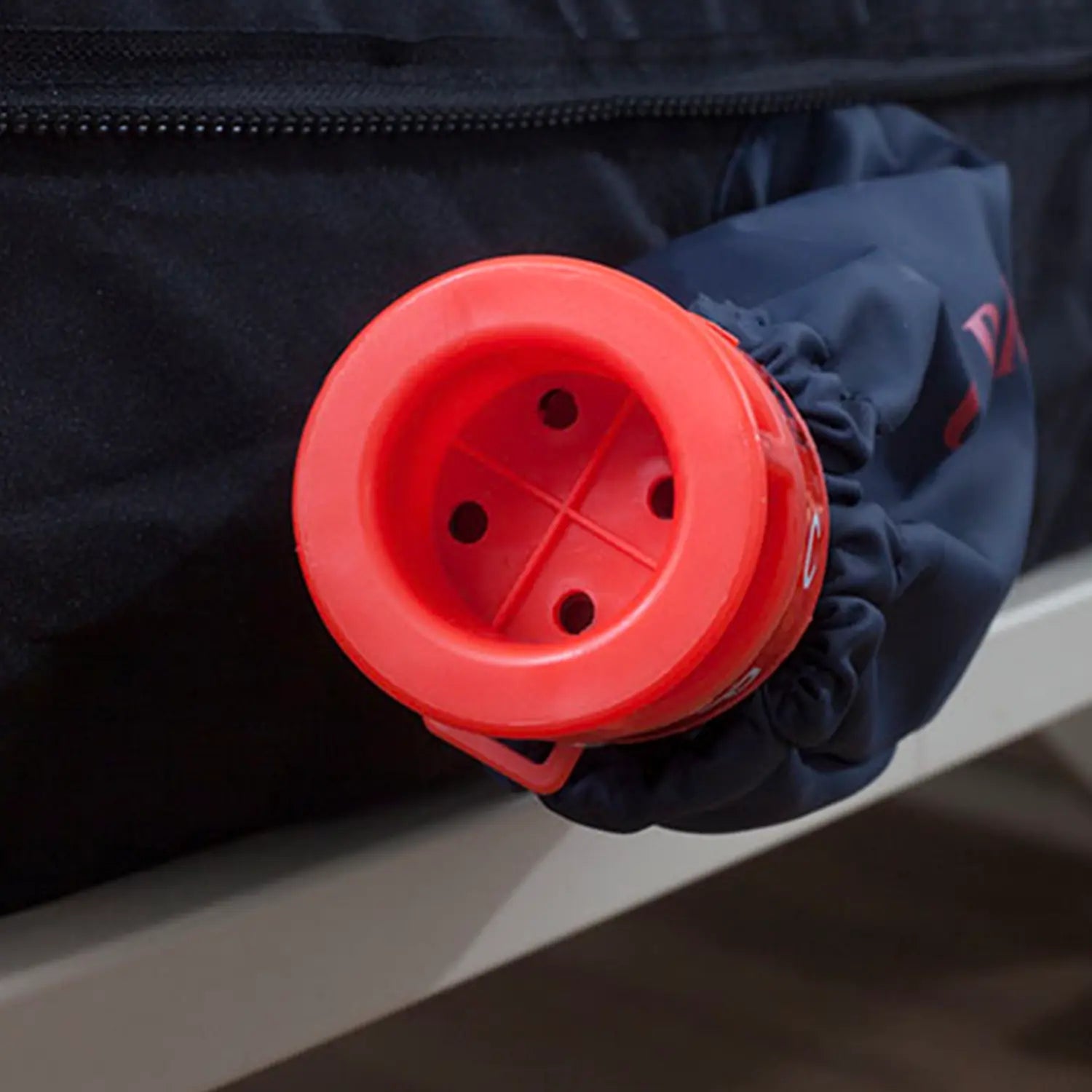

Patented CPR Quick Inflate/Deflate System
8 Ventilated Low Air Loss Cells

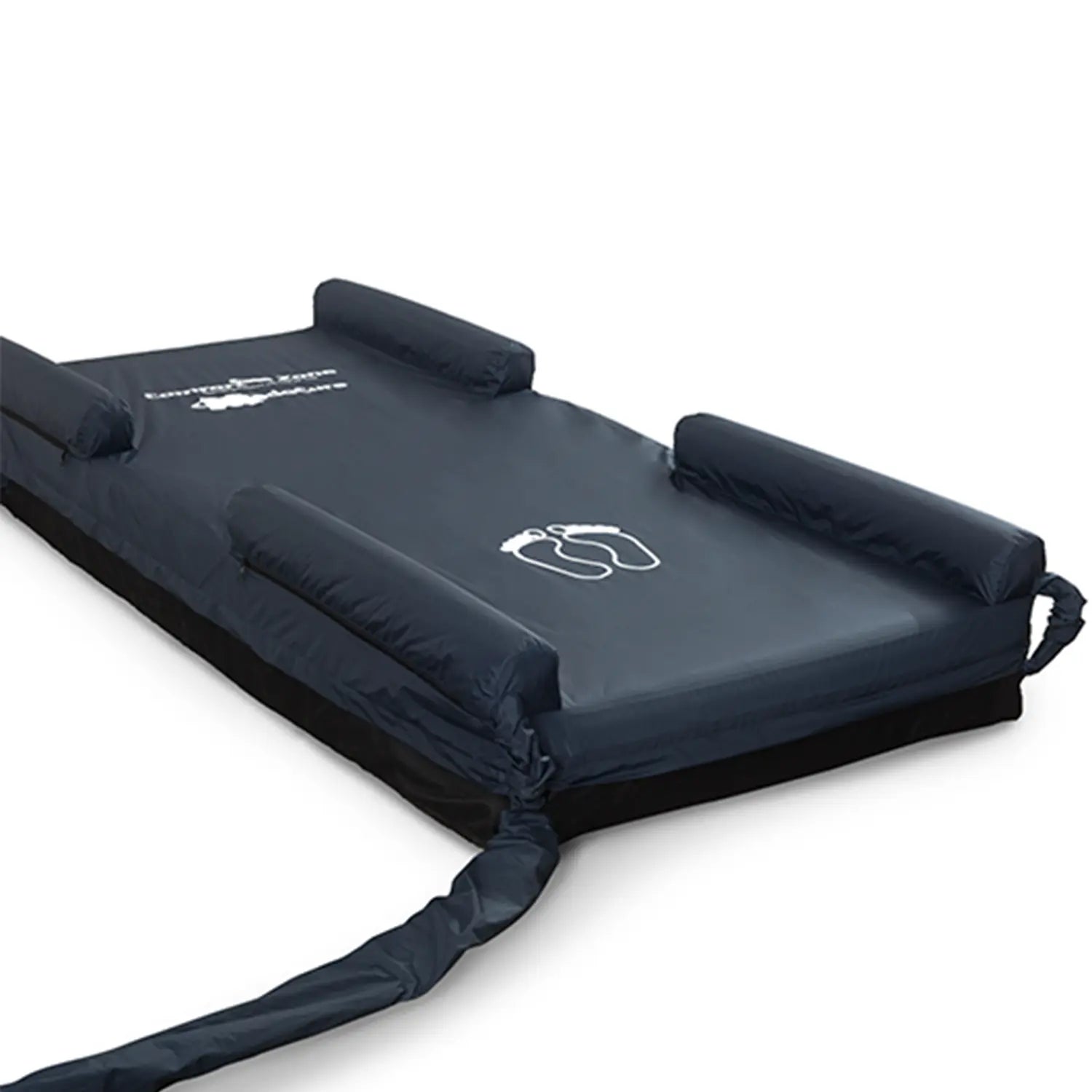

Optional Built-In Air Perimeter for patients at risk of falling out of bed

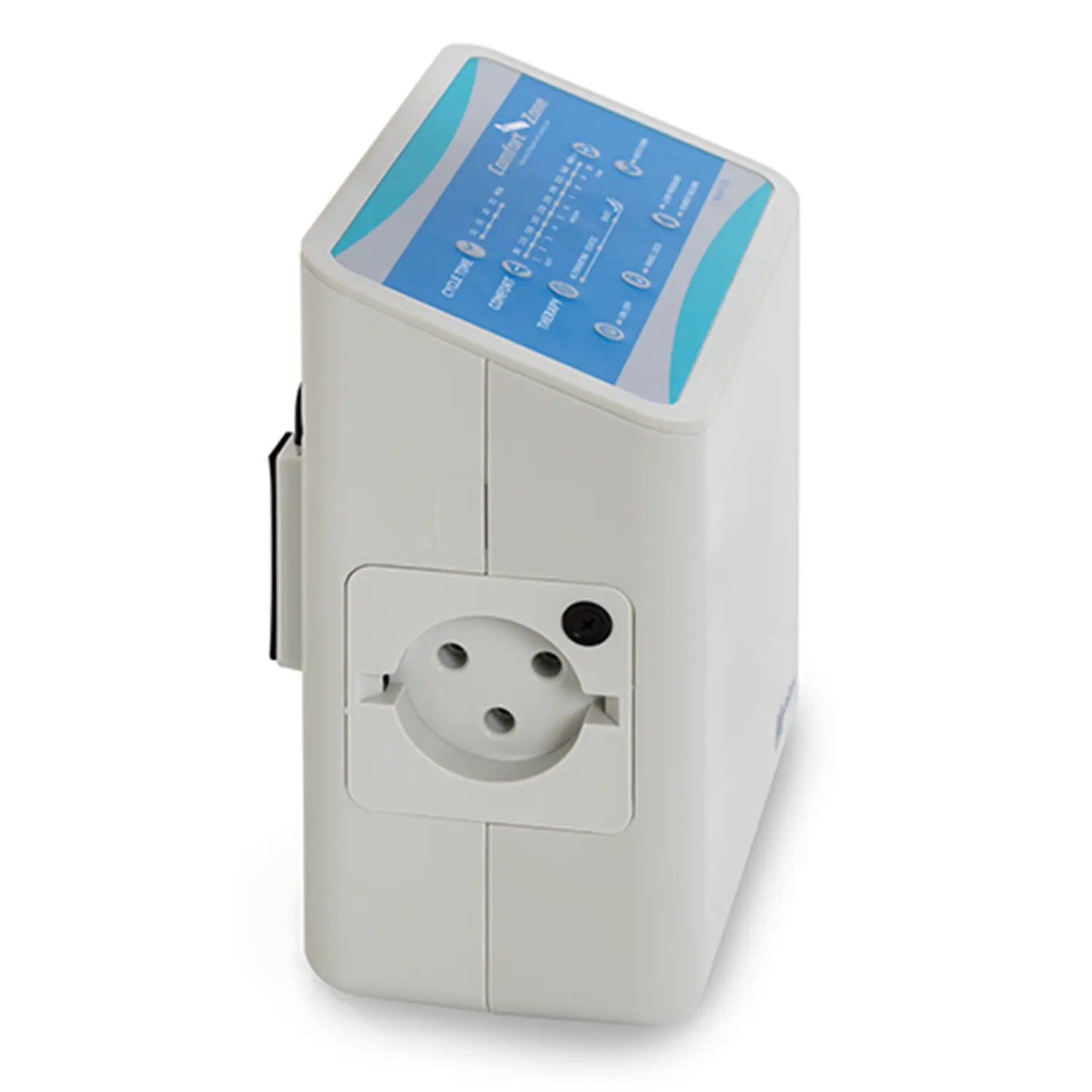

Pump

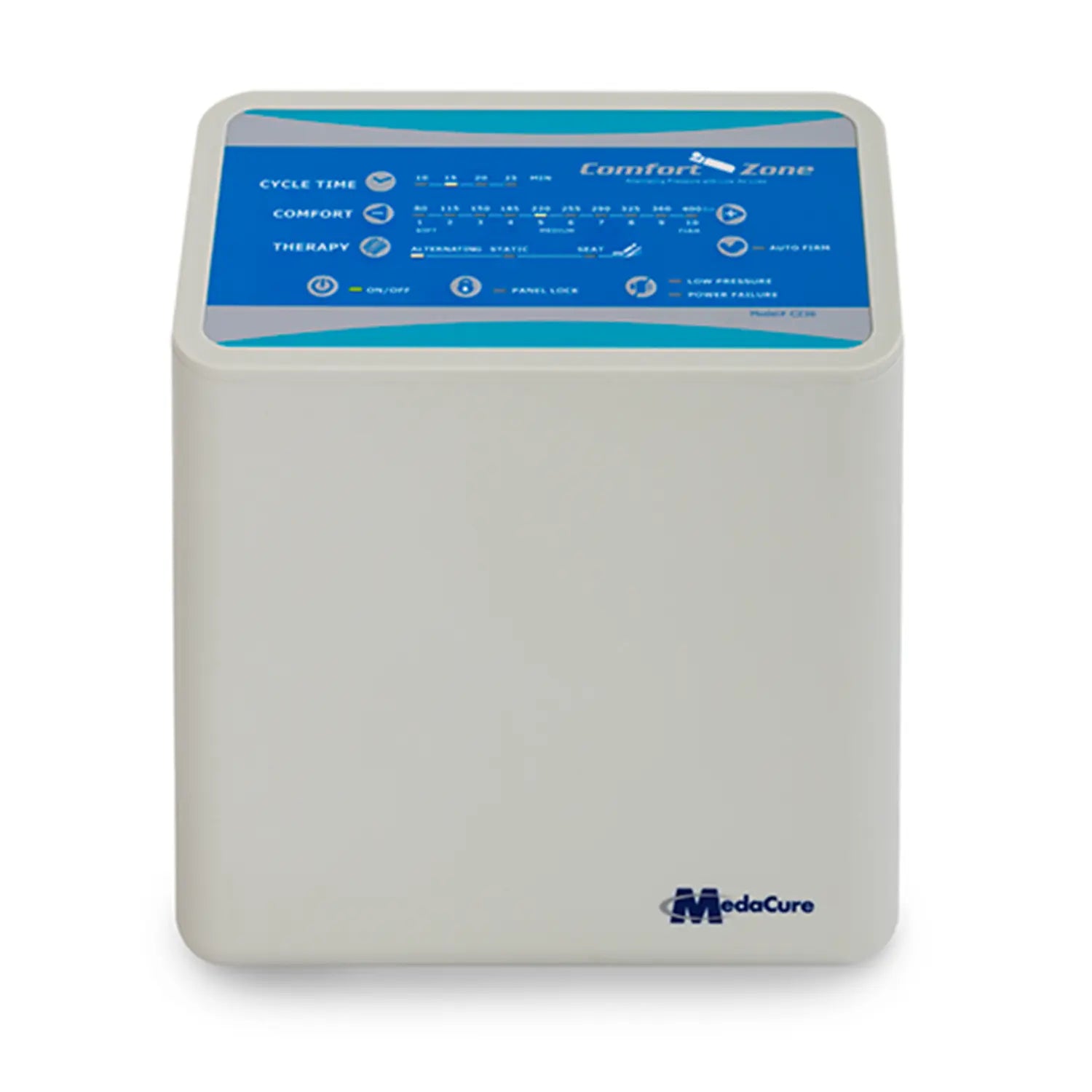

User Friendly Digital Control Panel
Alternating Pressure and Static Function
Comfort Level Adjustable
Auto Firm Inflation
10 Level pressure range adjustable by patients weight or pressure level
Panel Lock Function
Low Pressure Indicator and Alert
Quick-change Air Filter
Specifications
| Function | Specification |
| Alternating Pressure | 20 Alternating Pressure Cells + Top 3 Cells Remain Static |
| Low Air Loss | 8 Ventilated Low Air Loss Cells |
| Total Number of Cells | 20 |
| Cell On Cell | Yes, Prevents Bottoming Out, Lower Half (4″) Remain Static |
| Cycle Time | 10, 15, 20, 25 Minutes |
| Cell Material | Nylon/TPU |

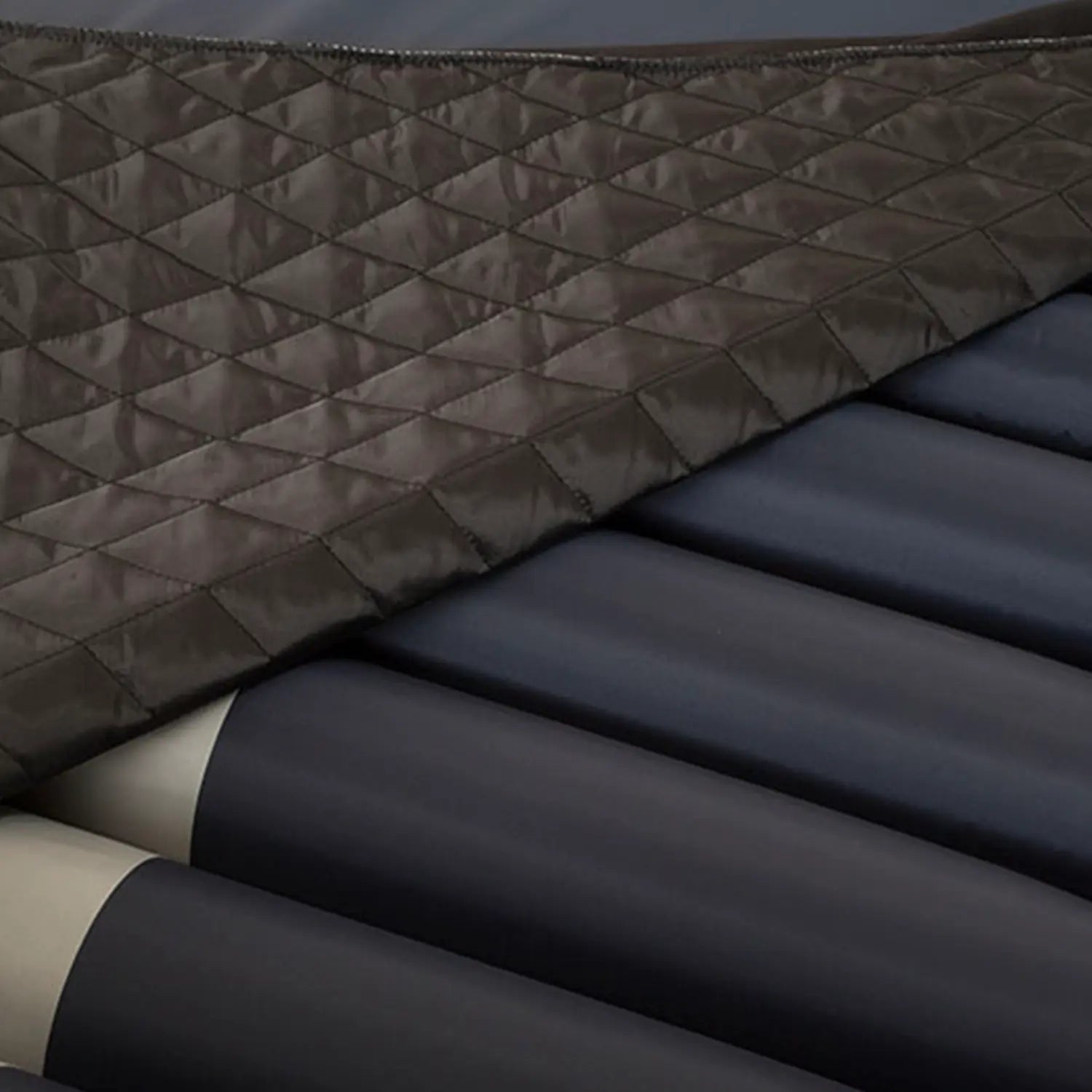

| Cover Material | Fluid Resistant Nylon Quilted With Zipper |
| Base Material | Woven With Anti Slip Coating |
| Treatment | Effective Through Stage IV |
| Pump Dimensions | 11.4” x 12” x 5.9” |
| Pump Weight | 6 Lbs |
| Power Chord Length | 15 Feet 120V/60 Hz Medical Grade Cord |
| Air Output | 8 – 10 LPM |
| Weight Capacity | 450 Lbs |
| Warranty | 2 Year |
| Item # | Mattress Dimensions |
| CZ36 | 80″ L x 36″ W x 8″ H |
| CZ3684 | 84″ L x 36″ W x 8″ H |
| CZ36-BIP | 80″ L x 36″ W x 8″ H |
Parts List
| Part # | Description |
| CZ36P | PUMP FOR CZ36 MATTRESS |
| CZ36M | SPARE MATTRESS FOR CZ36 |
| CZ36MBIP | SPARE PERIMETER MATTRESS FOR CZ36 |
| CZ36C | SPARE COVER FOR CZ36 |
| CZ36C-P | SPARE PERIMETER COVER FOR CZ36 |
| SC-LAL-CZ36 | SPARE CELL FOR CZ36 MATTRESS – LAL |
| SC-APC-CZ-L | PERIMETER CELLS – LEFT SIDE |
| SC-APC-CZ-R | PERIMETER CELLS – RIGHT SIDE |
| PCCZ | POWER CORD FOR COMFORT ZONE SERIES 4.5M |
| CZCPR | RED CPR NOZZLE FOR CZ SERIES |
| CZCN | HOSE CONNECTOR FOR CZ SERIES (36/42/48) W/TRANSFER CAP |
| CZ36-CB | CIRCUIT BOARD FOR CZ36 |
Download Manual
