MedaCure Bariatric Alternating Pressure with Low Air Loss

Name: MedaCure Bariatric Alternating Pressure with Low Air Loss
Brand: Medacure
SKU: CZ42
Price: 1240.0 USD
Availability: InStock

$1,240.00 USD

Availability:

in stock, ready to be shipped

Size:

80” X 42” X 10” 80” X 48” X 10” 84” X 42” X 10” 84” X 48” X 10”

Options:

Bariatric Bariatric Extra Long

Variant

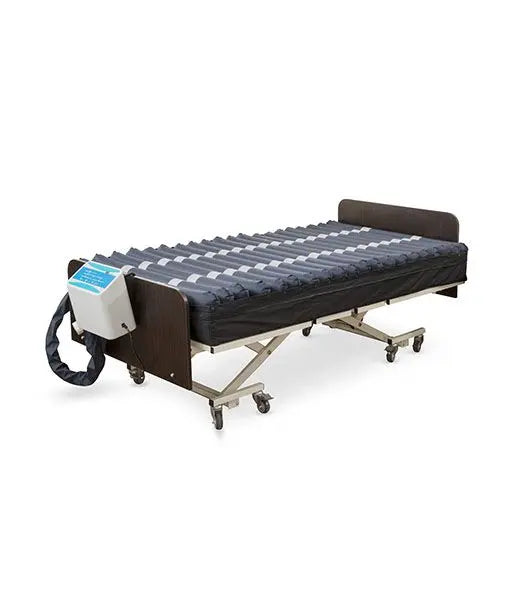

The Medacure Bariatric Comfort Zone mattress with a weight capacity of 1,000 lbs., combines alternating pressure and low air loss for effective treatment, prevention and management of Stage IV wounds for the bariatric patient. 10″ Ultra high bariatric support surface has a cell-on-cell design that prevents bottoming out in case of a power outage. The whisper quiet digital pump is easy to operate and allows the caregiver to set the pressure by firmness or patients weight. Available in multiple sizes – ultra wide (42″ and 48″) and standard 80″ long or 84″ extra long for the tall patient.

Features

Mattress

True Bariatric Mattress – Ultra Wide & Heavy Weight Capacity to 1,000 lbs.

20 Easy Replaceable Snap-Out Air Cells
Cell-on-Cell Design – bottom 4″ retain air to prevent bottoming out
Pillow Function – Top 3 cells remain static for patient comfort
8 Ventilated Low Air Loss Cells

Quilted Cover with Hidden Zipper
Patented 2 minute inflate/deflate system and includes a quick inflate/deflate pump

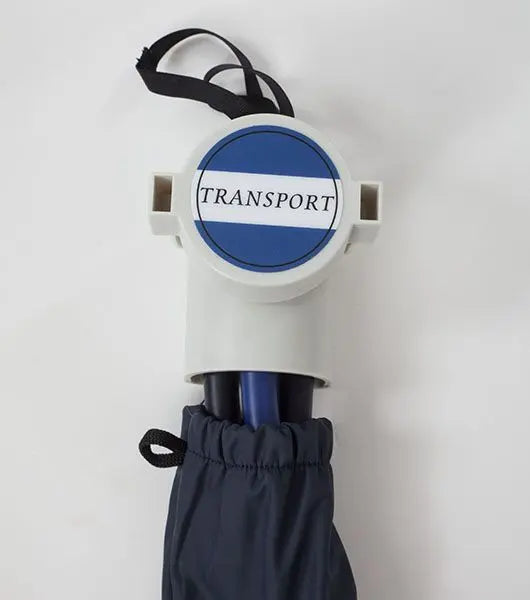

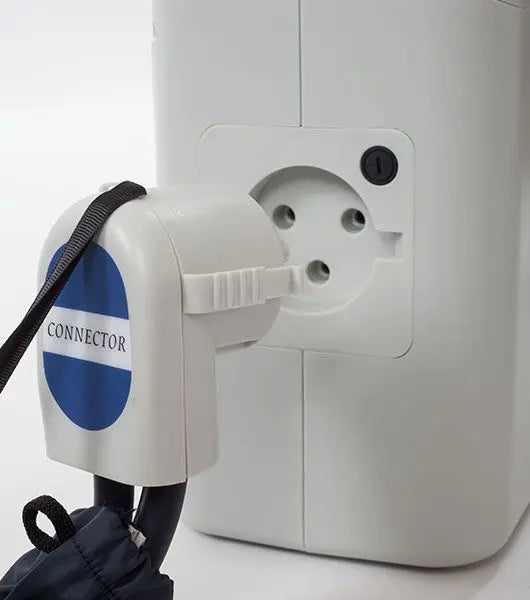

Patented Quick Connect Hose with Transport Function
Optional Built-In Air Perimeter for patients at risk of falling out of bed

Pump

PRESSURE RANGE – 10 Levels
Adjustable by patients weight or pressure range

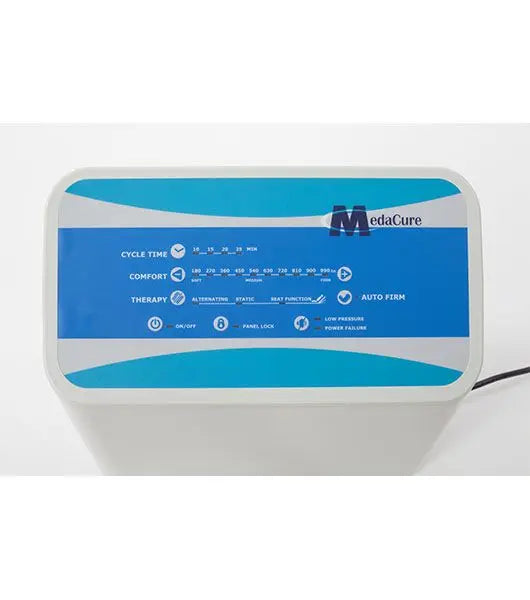

User Friendly Digital Control Panel
Alternating Pressure and Static Function
Comfort Level Adjustable

Auto Firm Inflation
Low Pressure Alert and Indicator
Power Failure Alert
Panel Lock Function
Quick-change HEPA Filter

Specifications

Function	Specification
Alternating Pressure	20 Alternating Pressure Cells + Top 3 Cells Remain Static
Low Air Loss	8 Ventilated Low Air Loss Cells
Total Number of Cells	20
Cell On Cell	Yes, Prevents Bottoming Out, Lower Half (4″) Remain Static
Cycle Time	10, 15, 20, 25 Minutes
Cell Material	Nylon/TPU
Cover Material	Fluid Resistant Nylon Quilted With Zipper
Base Material	Woven With Anti Slip Coating
Treatment	Effective Through Stage IV
Bariatric	True Bariatric Ultra Wide and Supports 1,000 lbs
Pump Dimensions	12″ x 12″x 6″
Pump Weight	9 Lbs
Power Chord Length	15 Feet 120V/60 Hz Medical Grade Cord
Air Output	12 – 15 LPM
Weight Capacity	1,000 Lbs
Warranty	2 Year

Item #	Mattress Dimensions
CZ42	80″ L x 42″ W x 10″ H
CZ48	80″ L x 48″ W x 10″ H
CZ4284	84″ L x 42″ W x 10″ H
CZ4884	84″ L x 48″ W x 10″ H
CZ42-BIP	80″ L x 42″ W x 10″ H WITH 2″ HIGH AIR PERIMETER
CZ48-BIP	80″ L x 48″ W x 10″ H WITH 2″ HIGH AIR PERIMETER

Parts List

Part #	Description
CZ42/48P	PUMP FOR CZ42/48 MATTRESS
CZ42M	SPARE MATTRESS FOR CZ42
CZ48M	SPARE MATTRESS FOR CZ48
CZ42MBIP	SPARE PERIMETER MATTRESS FOR CZ42
CZ48MBIP	SPARE PERIMETER MATTRESS FOR CZ48
CZ42C	SPARE COVER FOR CZ42
CZ48C	SPARE COVER FOR CZ48
CZ42C-P	SPARE PERIMETER COVER FOR CZ42
CZ48C-P	SPARE PERIMETER COVER FOR CZ48
SC-LAL-CZ42	SPARE CELL FOR CZ42 MATTRESS – LAL
SC-LAL-CZ48	SPARE CELL FOR CZ48 MATTRESS – LAL
SC-APC-CZ-L	PERIMETER CELLS – LEFT SIDE
SC-APC-CZ-R	PERIMETER CELLS – RIGHT SIDE
PCCZ	POWER CORD FOR COMFORT ZONE SERIES 4.5M
CZCPR	RED CPR NOZZLE FOR CZ SERIES
CZCN	HOSE CONNECTOR FOR CZ SERIES (36/42/48) W/TRANSFER CAP
CZ42/48-CB	CIRCUIT BOARD FOR CZ42/48

Product Brochure

Download
