Free Spirit Bariatric Patient Lift

Name: Free Spirit Bariatric Patient Lift
Brand: Medacure
SKU: FS660-T
Price: 2649.0 USD
Availability: InStock

$2,649.00 USD

Availability:

in stock, ready to be shipped

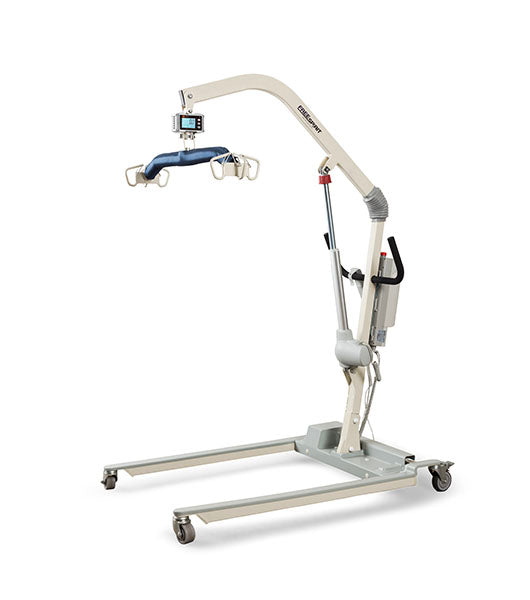

Dual purpose patient lift for the standard and bariatric patient. The Free Spirit is a durable, secure and sturdy 660 lb. capacity patient lift and is perfect for a facility with multiple needs. Provides a safe alternative to manual lifting for both the caregiver and patient. Dual motors raises/lowers the patient from floor to 70″ high. Power base expands from 28″ – 45″ ultra wide.

Features

Dual motors power the lift range and legs to open and close
Ultra wide leg opening easily wraps around bariatric wheelchairs and equipment
50” extra long leg length for increased stability

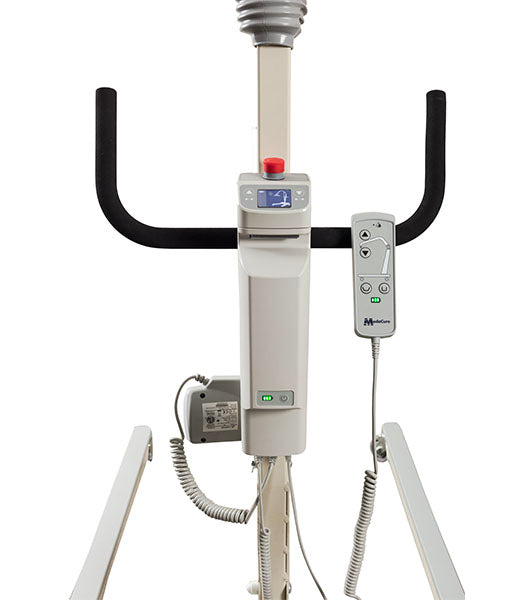

Oversized soft foam handle for increased control when moving the lift

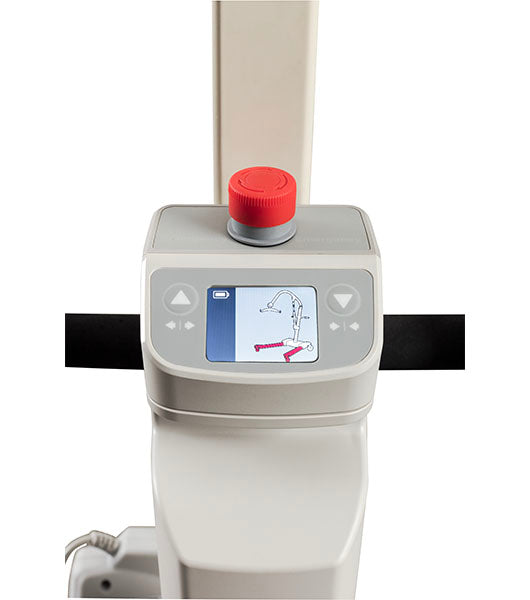

Emergency stop button locks the lift in place
CPR function lowers and raises the lift when the battery is discharged

Total pinch point protection
Padded swivel bar protects residents head

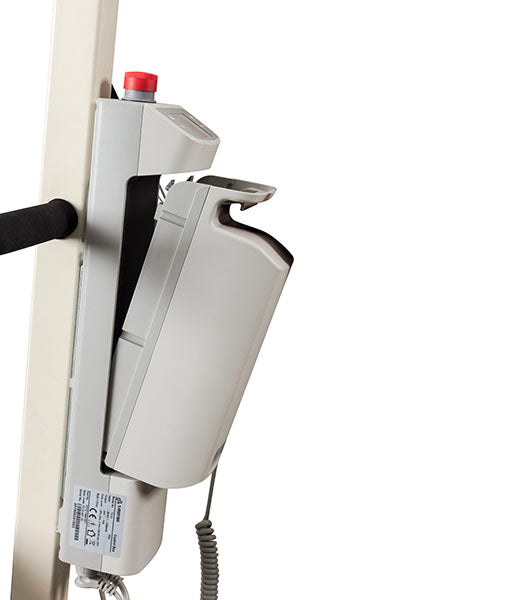

Quick release battery eliminates downtime

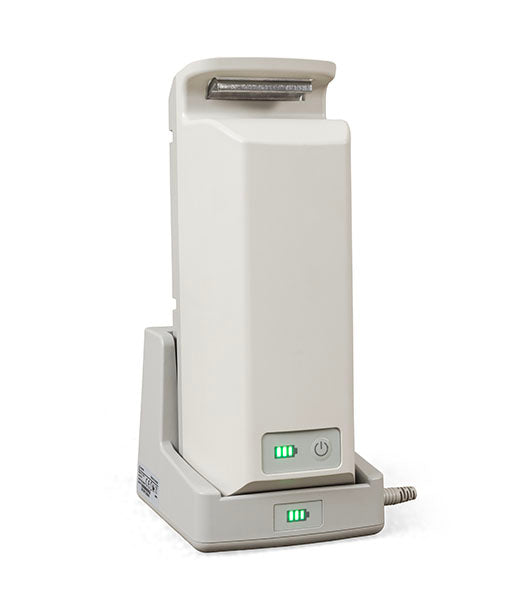

Battery can be replaced immediately with separate charging base
Battery can also be charged on board
LED’s show battery charge level

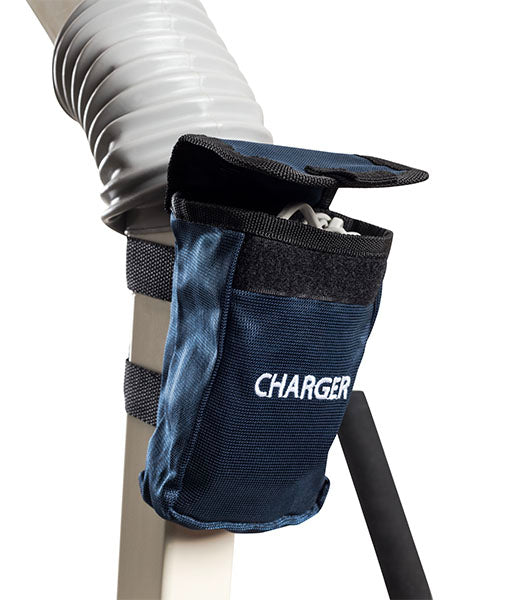

Charger case stores the charger plug on the lift

Specifications

Function	Specification
LIFTING RANGE	28″ – 70″
BASE WIDTH	45″ (OPEN) / 28″ (CLOSED)
POWER BASE	YES

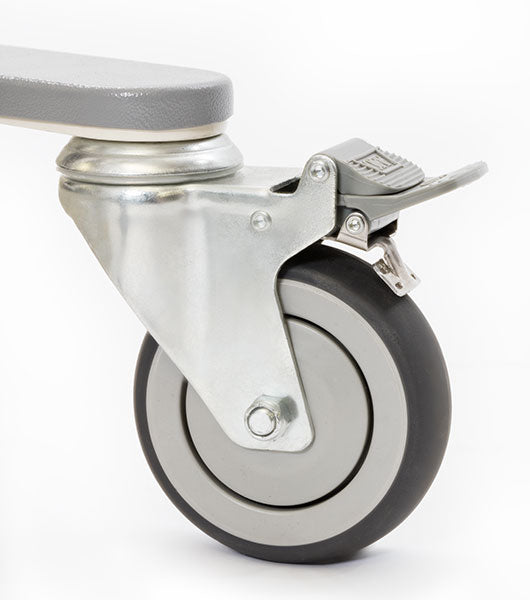

CASTER SIZE	FRONT: 3″ SWIVEL / REAR: 4″ LOCKING
BED CLEARANCE	4.5″
ACTUATOR BRAND	TIMOTION
WEIGHT CAPACITY	660 LBS.
WARRANTY	15 YEAR ON FRAME; 3 YEAR ON ELECTRONICS; 1 YEAR BATTERY AND PENDANT

Parts List

Part #	Description
FS660T-H/L	T-MOTION HI/LO MOTOR
FS660T-F	T-MOTION POWER BASE MOTOR

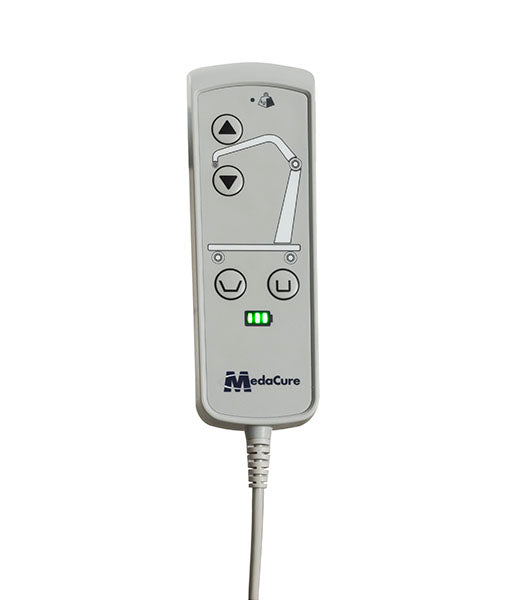

FS660T-RC	PENDANT
FS660T-B	BATTERY
FS660T-CB	CONTROL BOX
FS660T-CH	CHARGER PLUG
FSCB	CHARGING BASE

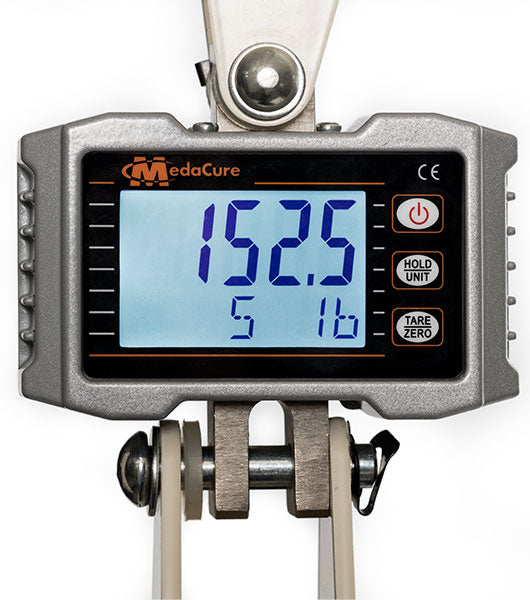

DS1100	DIGITAL SCALE
FS660-C3	FRONT CASTOR – 3″
FS660-C4	REAR LOCKING CASTOR – 4″
FS660T-CH/P	CHARGER POUCH

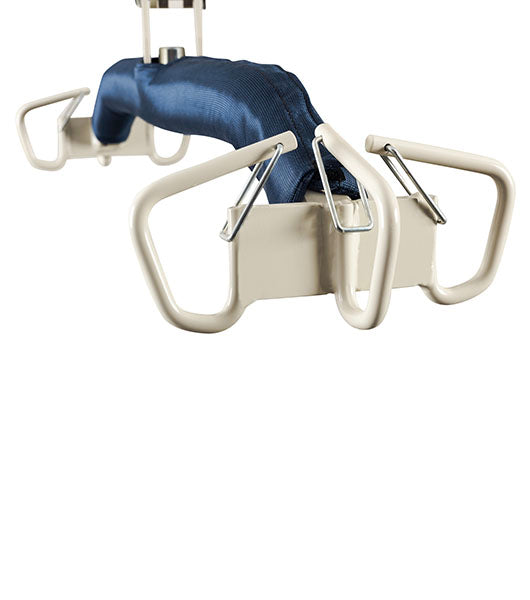

FS660T-HA/B	HANGER BAR
FS660T-HA/C	HANGER BAR COVER
FS660T-CB/B	BRACKET FOR CONTROL BOX
FS660T-CPP	COVER FOR PINCH POINT
FS660T-PC/B	PLASTIC COVER – BACK OF BASE
FS660T-PC/L	PLASTIC COVER – LEG
