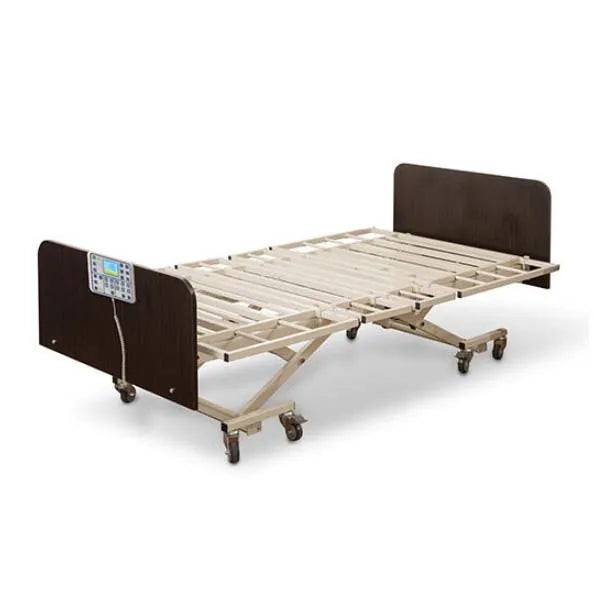

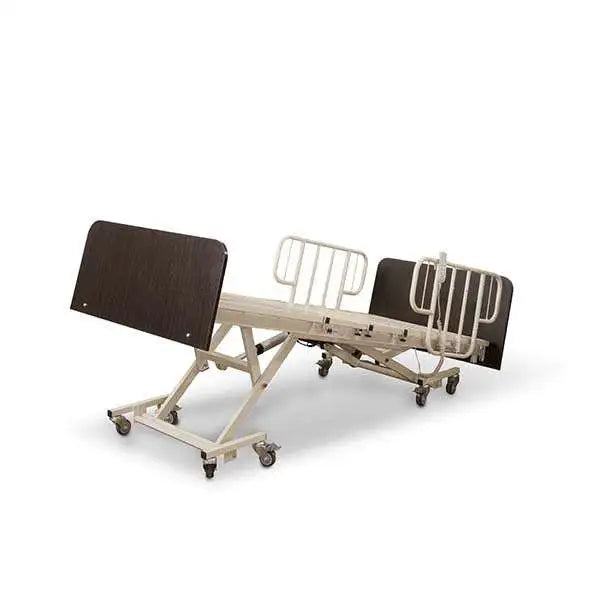

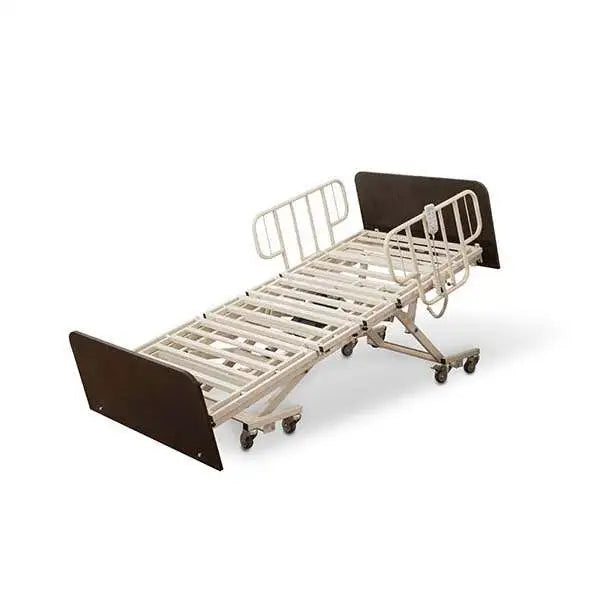

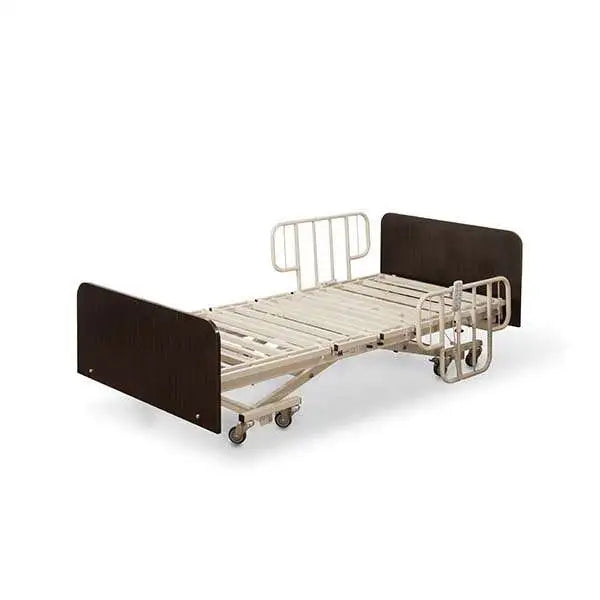

LINCOLN EXPANDABLE BARIATRIC BED
in stock, ready to be shipped

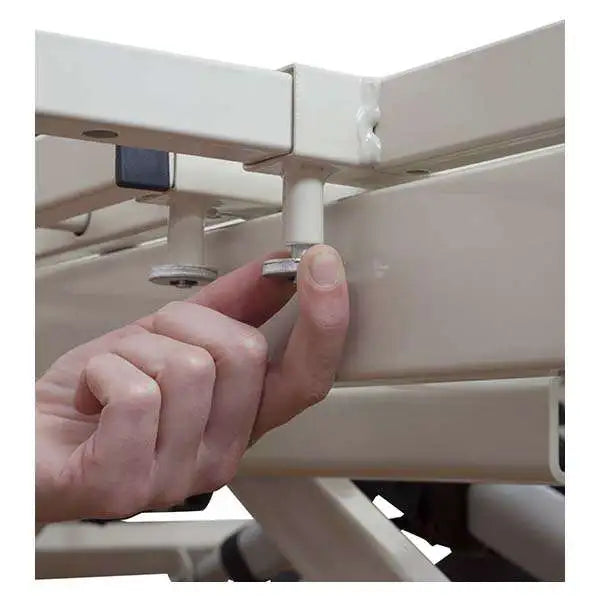

The Lincoln bed series are True Bariatric Frames that have a built-in expansion system. The width expands from 36″-42″-48″ and the length extends from 80″-88″. Locks securely in place with a heavy spring bolt. Built-In Expansion and No Tools Required. Comes in standard and ultra low height to 9″. Head and foot boards are available in Mahogany, Amber Cherry, and Light Oak.
Features
-
Expandable integrated width from 36” – 42” – 48”
-
Expandable integrated length from 80″ to 88″
-
Tool-less Design – Width & Length expand & retract without tools
-

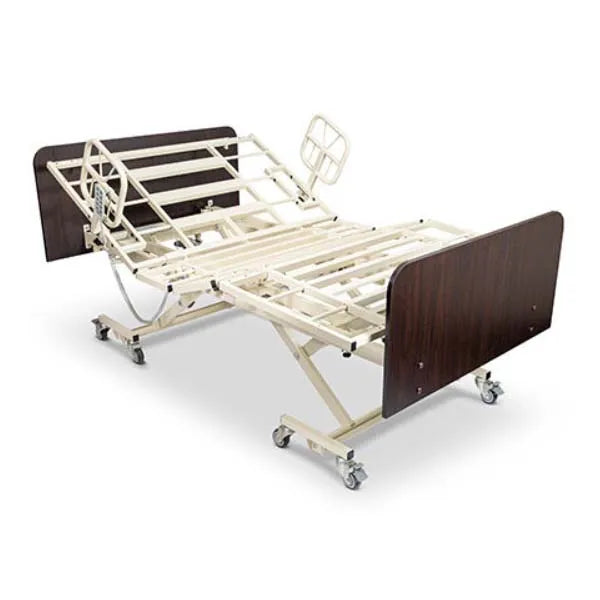

5 Function electric bed – Hi/Lo, Head, Foot, Trendelenburg and Auto contour function
-

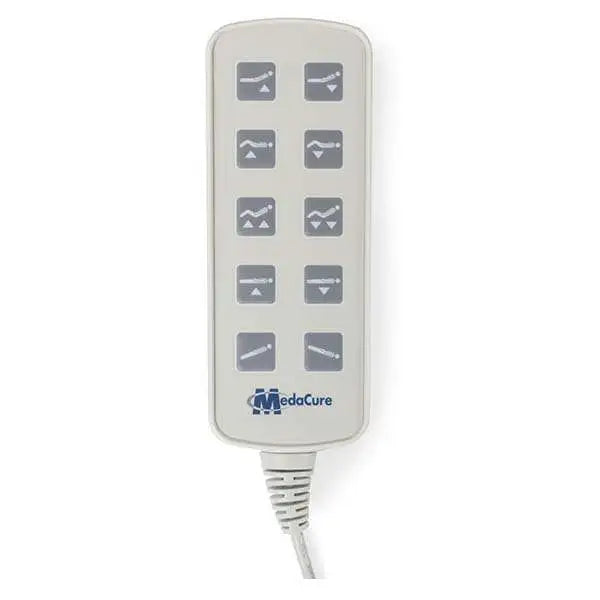

10 Function hand pendant with universal symbols
-
Heavy duty rectangle tube bed deck with reinforced steel frame
-
8 – 3” Durable Casters: 4 Swivel and 4 Locking Casters
-
IV pole mount and Trapeze bracket mount on 2 head corners
-

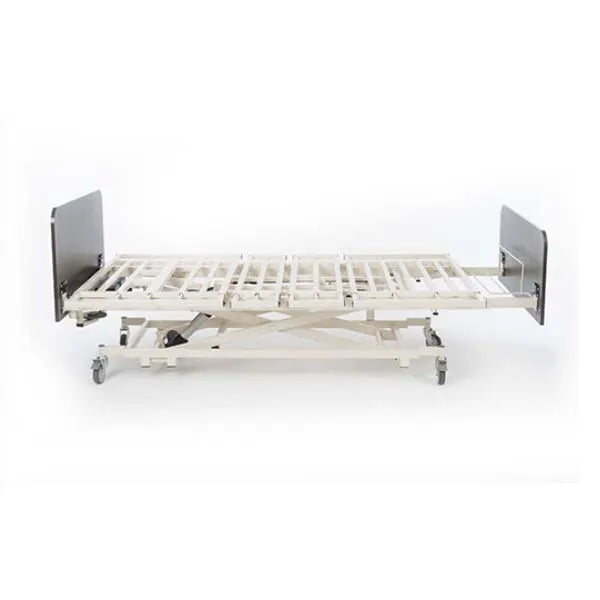

LX-BARI-9 Ultra low bariatric bed provides a safe sleeping surface for fall patients
-
Expandable headboard from 36” – 42” – 48”
-

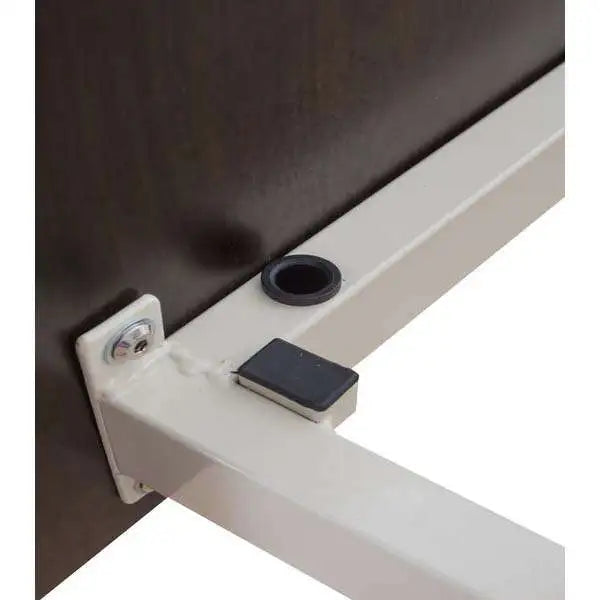

Retractable bumper guards on head end protect walls from mars and scratches
-
Bed boards and QBar assist bars – included
-
Boards come in Mahogany, Amber Cherry and Maple
Specifications
| Function | Specification |
| FUNCTIONS | 10 FUNCTION ELECTRIC – HI/LO, HEAD, FOOT, TRENDELENBURG, REVERSE TRENDELENBERG, AUTO CONTOUR |
| MATTRESS DECK DIMENSIONS | 80″ L X 36″ W |
| BUILT-IN WIDTH EXPANSION | YES – 36″ X 42″ X 48″ |
| BUILT-IN LENGTH EXTENSION | 80” – 88” |
| LOW RANGE | LX-BARI: 14″ / LX-BARI-9: 9″ |
| HIGH RANGE | LX-BARI: 30″ / LX-BARI-9: 25″ |
| EXPANDABLE HEADBOARD | YES – 36″ – 42″ – 48″ |
| ACTUATOR BRAND | LINAK |
| WEIGHT CAPACITY | 750 LBS. |
| CASTORS | 8 x 3” CASTORS, 4 LOCKING / 4 SWIVEL |
| UNDERBED CLEARANCE | 5.7” |
| WARRANTY | 15 YEAR ON FRAME; 3 YEAR ON ELECTRONICS; 1 YEAR PENDANT |
Parts List
| Part # | Description | Comments |
| L6000N-150-325 | HEAD MOTOR – LINAK | |
| L6000N-100-275 | FOOT MOTOR – LINAK | |
| L8000N-200-375 | HI/LO MOTOR – LINAK | X 2 |
| L-CO61 | CONTROL BOX – LINAK | |
| L-RHS-5 | REMOTE – 5 FUNCTION – LINAK | |
| L-PC | POWER CORD – LINAK | |
| LM-PC | LINAK MOTOR POWERCORD | |
| HFBLX-BARI | HEAD & FOOT BOARD SET- | set of 2 |
| LX-BARI-WINGS | WINGS FOR FOLDABLE HEADBOARD | X 2 |
| LX-BARI-WINGS/B | WINGS BRACKET FOR FOLDABLE HEADBOARD | X 2 |
| MR-C | MATTRESS RETAINERS (SET OF 4) | |
| MR-S | MATTRESS SIDE RETAINERS (SET OF 4) | |
| CA-3W | CASTOR 3″ W/O BRAKE | X 4 |
| CA-3B | CASTOR 3″ WITH BRAKE | X 4 |
| LEBFL-R | LENGTH EXTENSION BAR – RIGHT SIDE | |
| LEBFL-L | LENGTH EXTENSION BAR – LEFT SIDE | |
| LEBR-M | LENGTH EXTENSION BRACKET FOR MATTRESS | |
| WE-H | WIDTH EXTENSION – HEAD | X 2 – 1 ON EACH SIDE |
| WE-S | WIDTH EXTENSION – SIT | X 2 – 1 ON EACH SIDE |
| WE-K | WIDTH EXTENSION – KNEE | X 2 – 1 ON EACH SIDE |
| WE-F | WIDTH EXTENSION – FOOT | X 2 – 1 ON EACH SIDE |
| SK-S | STAR KNOB – FOR LENGTH EXTENSION | X 2 |

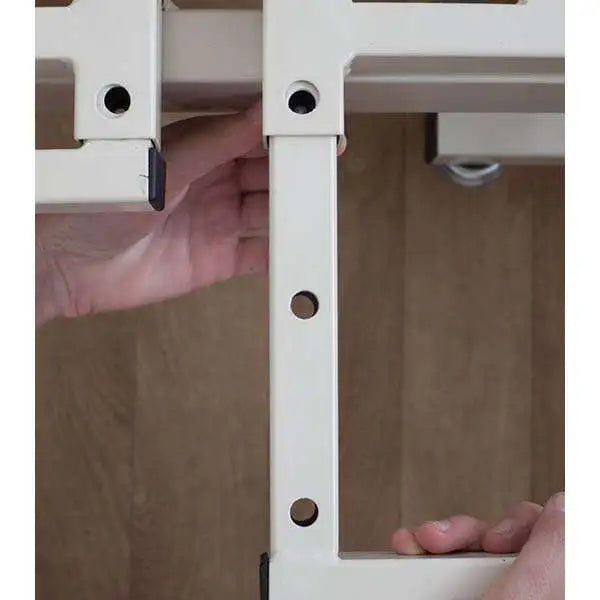

| SB-WE | SPRING BOLT FOR WIDTH EXTENSION | X 4 ON EACH SIDE |
| CB-LX-BARI | CASTOR BASE | |
| HD-LXBARI/SLB48 | HEAD DECK (# 1) |
HEAD & FOOT BOARDS ON THE LX-BARI SERIES DO NOT HAVE THE QR FUNCTION
|
| SD-LXBARI/SLB/ULB48 | SITTING DECK (# 2) | |
| KD-LXBARI/SLB48 | KNEE DECK (# 3) | |
| FD-LXBARI/SLB48 | FOOT DECK (# 4) |
